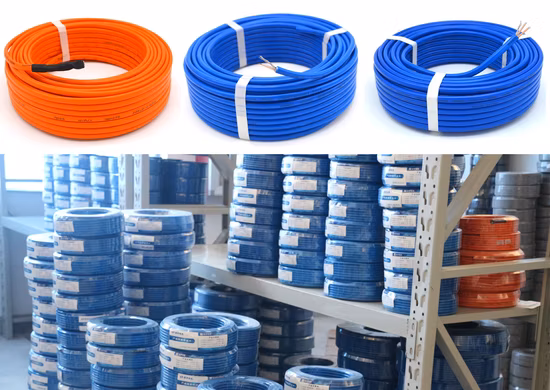

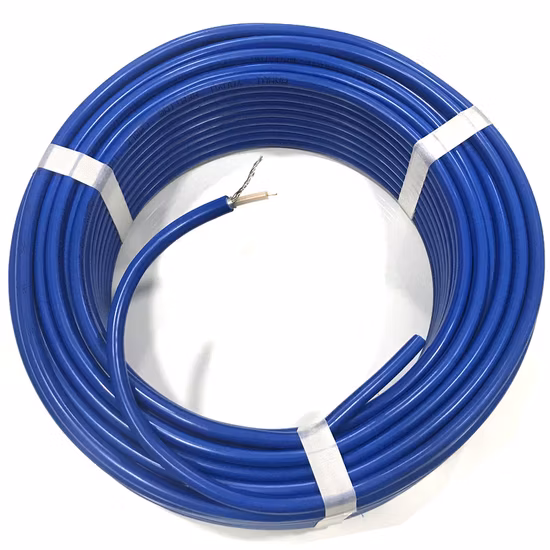

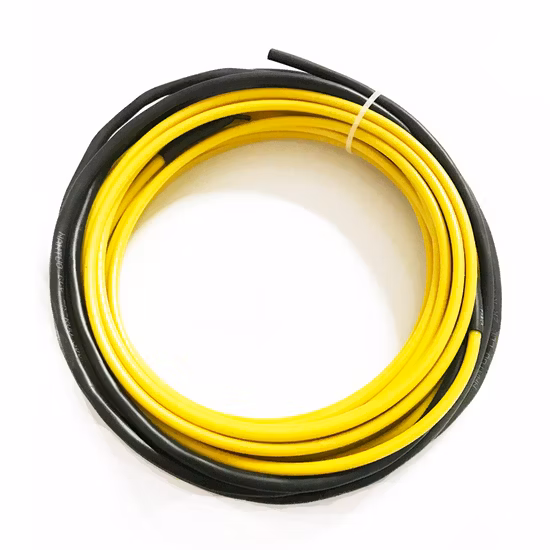

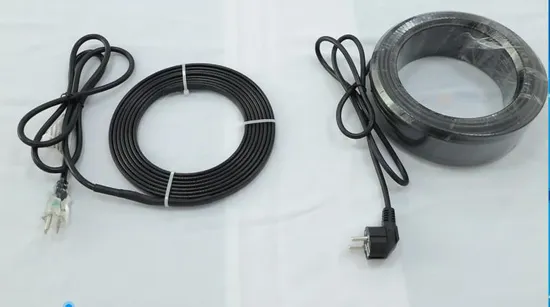

Customizable Electric Trace Heating Cable for Antifreezing Defrosing Deicing Cable
Sanniu's specialized electric heat tracing system is an ideal choice and solution. By far, Sanniu has successfully desig
Basic Info.
Model NO. | LSR, MSR, HSR, DHC, PHC, etc. |
HS Code | 8516800000 |
Production Capacity | 100000 M/Month |
Product Description
Sanniu's specialized electric heat tracing system is an ideal choice and solution. By far, Sanniu has successfully designed and installed electric heat tracing systems for various pressure pipelines. In choosing appropriate electric heat tracing cables, we must use the enhanced type (explosion-proof & corrosion-resistant) heat tracing cables. Subject to different media, there are electric heat tracing cables of several temperature groups to choose from. For gas media, the explosion-proof & corrosion-resistant self-regulating heat tracing cables can be used; for liquefied gases requiring relatively higher temperature maintenance and for long pipelines, constant wattage heat tracing cables (0-180ºC) may be a good choice; if the internal medium temperature is very high, e.g. steam, MI heating cable (0-600ºC) is good choice. All these cables are fire retardant and explosion-proof.
Model | LSR | MSR | HSR |
Output wattage at 10ºC | 10/15/25/30 W/M | 35/45/60 W/M | 45/60 W/M |
Braiding material and covering area(for LSR-P/F) | Aluminum-magnesium alloy (Tinned cooper for option)Over 80% | Aluminum-magnesium alloy (Tinned cooper for option) | Tinned cooperOver 80% |
Max. Maintain temperature | 65 ºC(149°F) | 105 ºC(221°F) | 125 ºC(257°F) |
Max. Exposure temperature | 85ºC(185°F) | 135ºC(275°F) | 175ºC(347°F) |
Min.Installation temperature | -40 ºC | -40 ºC | -40 ºC |
Heat stability | Maintain Over 95% heat after 300 cycles from10 ºC to 149 ºC | Maintain Over 95% heat after 300 cycles from10 ºC to 149 ºC | Maintain Over 95% heat after 300 cycles from10 ºC to 149 ºC |
Conductor | Tinned cooper 7*0.42mm(7*0.5mm, 19*0.3mm, 19*0.32mm customized available) | Tinned cooper 7*0.5mm(19*0.3mm, 19*0.32mm customized available) | Tinned cooper 19*0.32mm(7*0.56mm customized available) |
Max.length of single power supply | 100m | 100m | 100m |
Material of insulation/ jacket | PVC, PE, Modified Polyolefin, PTFEand other fluoropolymer as option | Modified Polyolefin, PTFEand other fluoropolymer as option | Modified polyolefin, F46, PTFEand other fluoropolymer as option |
Bending radius | 5 times*cable thickness | 5 times*cable thickness | 5 times*cable thickness |
Resistance between bus wire and braiding | 20 MΩ/M with a VDC 2500 megohmmete | 20 MΩ/M with a VDC 2500 megohmmete | 20 MΩ/M with a VDC 2500 megohmmete |
Voltage | 110-120/208-277 V | 110-120/208-277 V | 110-120/208-277 V |
Regular color | Black (other colors customized) | Brown (other colors customized) | Red (other colors customized) |
Regular size(please contact us for other size) | LSR-J 12*3.5mm, LSR-P/F 13.8*5.5mm (Width*Thickness) | MSR-J 12*3.5mm, MSR-P/F 13.8*5.5 (Width*Thickness) | HSR 14*5.5 mm (Width*Thickness) |
